What We Do
Full Fork and Shock Servicing
Based in Calgary, Alberta. We do 50 and 150 hour services for all Major brands: Fox, Rock Shox, Manitou, DVO, Cane Creek, X-Fusion and SR Suntour.
Bushing Burnishing
Get the maximum reduction in friction with perfectly round bushings with perfect oil clearance.
SKF Green Ultra Low Friction Wipers
Get the maximum reduction in friction and long Service life with SKF Green Dust Wipers.
Spring Upgrades
From Vorsprung Luftkappe, Secus and Smashpot coil conversion to a DSD Runt 3rd air chamber.
Damper Tuning
Custom built tunes available from Vorsprung, Shockcraft and WPS. This will be a growing part of Evolution Suspension over 2023 so please check back for more updates,
Creaky Crown Stanchion (CSA) Repair
Have an annoying mystery creak in the front of your bike? There’s a good chance it’s from the interface between your crown and stanchion, or crown and steerer, or a combination of all 3. We press it apart, clean out the fretting and reassemble it with a loctite press fit retaining compound that virtually eliminates creaks now and in years to come.
New steerer tube installation
Measured once, cut twice? No problem, we can install a new steerer tube!
Superior lubricants
Alberta has a tough climate, and your suspension was not designed with our temperature extremes in mind. We have Damper oils and semi bath oils that are more consistent over a wide temperature range, and more slippery than factory oils.
Vacuum Bleeding
The best damper performance comes from a Vacuum bleed, Getting out almost 100% of the air from the damper gives a better, more consistent performance.
Custom Seal Kits
We find the weak link in your suspension with upgraded seals over factory (where applicable), to make your suspension more reliable and consistent. We source custom seals for hard to find applications from around the world and are also able to get seals custom-made.
New or Old- We Service them all!
Have an older suspension that needs some TLC? No worries, @ evolution suspension we work on all years of shocks and forks, and can often source seals that are no longer available from the manufacturer.

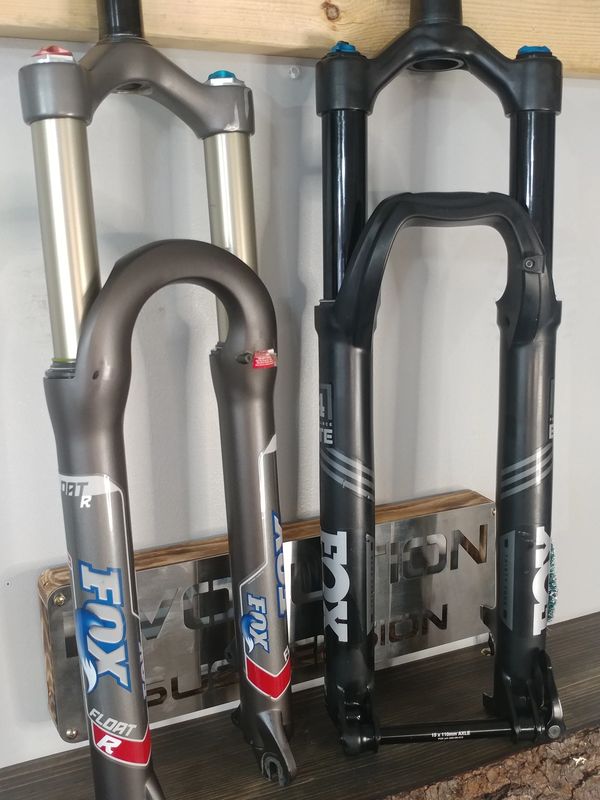

Fork Service
A) Basic 50 hour service: $70 plus parts
-Remove, clean and inspect lowers, bushings and stanchions
-New wipers and foam rings
-Upgraded semi bath oil
-Bench test for creaky CSU
B) Basic 50 hour service Plus air spring service: $100.00 plus parts
-Basic service PLUS
-Remove, clean and inspect Air Spring, seals and sealing surfaces.
-Fresh Air Spring lubricant
C) Complete service standard spec: $145 plus parts
-Basic service including Air Spring PLUS the following
-Record all settings
-Remove, clean, disassemble and inspect damper
-Inspect damper shims for cracks or damage
-Replace dynamic air and damper seals as well as associated seals
-Vacuum or hand bleed damper, depending on model
-Motorex Racing Fork Oil damper oil upgrade
-Check fit of fork bushings for the ultimate fork performance. If tight bushings are found, Evolution will resize bushings for minimum friction and maximum performance!
-All adjusters and detents will be cleaned
-Required parts will be ultrasonically cleaned
-All settings and pressure will be returned to customer settings
D) Evolution Premier Service package: $178 plus parts
-Complete service PLUS the following
-Full seal change, complete 100% tear down, cleaning and inspection above and beyond factory service manual and factory seal kits.
*Not usually needed on most suspension 2-4 years old or newer.
Fork Add ons
-Bushing Resizing $50.00 to $60 depending how tight
-Standard low friction wiper kits $40-$50
-SKF Green ultra low friction wiper upgrade $60.00
-Air Spring upgrades
-Coil Spring conversions
-Damper tunes
Learn More
**All service prices include oils, lubricants and shop supplies
***Ride in the winter? Ask for our exclusive winter fluids package!
****Bring in more and save$$$
-2 items 5% off
-4 items 10% off
***** If damper or spring issues are found during inspection, customer will be contacted with estimate for extra service and parts needed.
*****Price is for suspension off of bike.
******GST Extra.
Shock Service
A) Basic 50 hour service: $60 plus parts
-Remove, clean and inspect Air Spring and associated parts
-Test Damper functions and adjustments on hand dyno
-New air sleeve kit and lubricants
-Equalize positive and negative air chambers
-Return customer settings and pressure shock to original pressure
-Leak test shock
B) Complete service standard spec: $145-160 plus parts
-Basic 50 hour, PLUS
-Record all settings
-Disassemble clean and inspect damper parts and shims
-Inspect damper shims for cracks or damage
-Replace dynamic damper seals and associated seals
-Vacuum or hand bleed damper, depending on model
-Motorex or Redline full synthetic damper oil upgrade
-All adjusters and detents cleaned
-Required parts will be ultrasonically cleaned
-Nitrogen charge IFP where specified
C) Evolution Premier Service package: $178.00 plus parts
-Complete service, PLUS
-Full seal change, complete 100% tear down, cleaning and inspection above and beyond factory service manual and factory seal kits.
*Not usually needed on most suspensions 2-3 years old or newer
Learn More
**All service prices include oils, lubricants and shop supplies
***Ride in the winter? Ask for our exclusive winter fluids package!
****Bring in more and save$$$
-2 items 5% off
-4 items 10% off
***** If damper or spring issues are found during inspection, customer will be contacted with estimate for extra service and parts needed.
*****Price is for suspension off of bike.
******GST Extra.
